WARNING: This product can expose you to chemicals that are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.The Dinan High Performance Heat Exchanger (D780-0002) is an essential thermal management upgrade for BMW B4x/B58-powered F2x/F3x chassis models, mitigating the performance-robbing heat soak common in modified builds. The thin core of the factory heat exchanger is easily overwhelmed, causing the ECU to pull timing and reduce power after successive wide-open throttle (WOT) pulls.
The Dinan unit addresses this challenge with a more robust core: the 48mm thick Dinan core is substantially larger than the 27mm OEM core, providing 78% more cooling surface area and volume. The significant increase in thermal mass, assisted by unique "L" shaped end tanks, significantly reduces the tendency to heat soak. This allows the vehicle to deliver maximum performance time and time again, with up to a 15° IAT delta recorded over stock and an average of 8° reduction in IAT's over 15 successive WOT pulls.
Features:
-
Optimized Cooling Capacity: Features a 48mm thick core (vs. 27mm stock) for 78% more cooling surface area and volume, significantly reducing the tendency to heat soak.
-
Temperature Control: Achieves an average 8° reduction in IAT's (Intake Air Temperatures) with a maximum reduction of 15° over stock during heavy use.
-
Performance Consistency: Mitigates the risk of the ECU pulling timing, extending the vehicle's ability to deliver consistent maximum performance.
-
Structural Quality: 100% TIG welded and pressure tested. Includes xDrive-specific transmission oil cooler brackets.
-
Installation: Direct replacement design, though minor modification to the plastic core stack shroud may be required with some factory configurations (especially those with the OEM hot climate heat exchanger).
Product Contains:
-

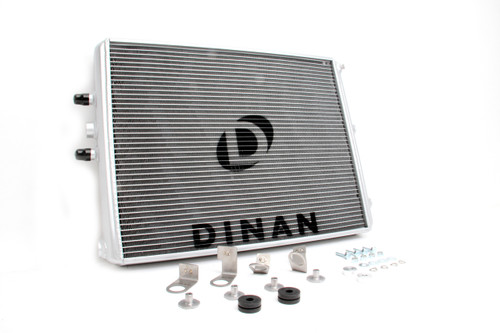

(1) Dinan High Performance Heat Exchanger (48mm core)
-
(1) Set of Installation Hardware (inclusive of xDrive specific brackets)
Warranty This product is supported by a Manufacturer's Warranty. Note: Manufacturer warranty terms are subject to change.
