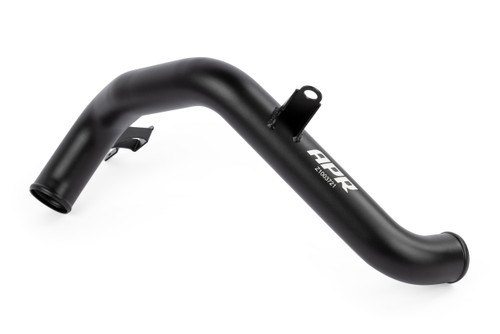

WARNING: This product can expose you to chemicals that are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.The APR Throttle Body Pipe (MS100222) is a high-performance charge-air upgrade for VW Golf R and Audi S3 (Gen 4) models. The factory plastic pipe is notoriously restrictive, featuring a narrow internal diameter and failure-prone internal baffles that can break or melt under high boost. APR replaces this with a full 60mm aluminum pipe that provides a smooth, constant diameter path from the intercooler to the throttle body, significantly reducing turbulence and potential boost leak points.
This pipe is designed for the serious enthusiast, featuring a billet aluminum 1/8" NPT bung for water/methanol injection or additional data sensors. It also includes integrated, TIG-welded bungs for the MAP sensor and Diverter Valve (DV) recirculation, ensuring a secure, factory-style fit with aftermarket strength. Finished in a durable satin black, this pipe features bead-rolled ends to prevent hose slippage, even in high-pressure Stage 2+ applications.
Features:
- Full 60mm High-Flow Path: Maintains a constant diameter for maximum air velocity and reduced backpressure.
- Aluminum Durability: Eliminates the risk of cracking or melting common with the factory plastic charge pipes.
- Billet Meth/Sensor Bung: Includes an integrated 1/8" NPT port for easy installation of water/methanol injection or a boost tap.
- Eliminates OEM Restrictions: Removes the failure-prone internal "accordion" and restrictive baffles found inside the stock throttle body inlet.
- Precision Engineering: Features TIG-welded mounting brackets and CNC-machined bungs for the MAP sensor and DV recirculation.
- Maximum Grip: Bead-rolled pipe ends provide a secure mating surface for hoses, preventing "pop-offs" under heavy boost.
- Aesthetic Finish: Finished in a high-quality satin black to look right at home in a clean engine bay.
Product Contains:
- (1) 60mm Aluminum Throttle Body Inlet Pipe
- (1) 1/8" NPT Billet Bung & Block-off Plug
- (1) Integrated Billet MAP Sensor Mount
- (1) Integrated Billet DV Recirculation Port
Technical Specifications:
| Specification | Details |
|---|---|
| Pipe Diameter | 60mm (Constant) |
| Pipe Material | 6061 Aluminum |
| Finishing | Satin Black Powder Coat |
| Accessory Port | 1/8" NPT (Billet) |
