WARNING: This product can expose you to chemicals that are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.AA5-HDG6 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad, spring-centered race disc features a spring-center to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.
- Light to moderate pedal effort, aggressive engagement, OE to mild gear rattle
- Moderate friction life, extended by ACT's exclusive diaphragm design
- Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance
- Recommended for high horsepower street or race use
- 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability
Specifications
Flywheel Included: YesPilot Bushing Included: Yes
Pressure Plate Type: Heavy Duty
Release Bearing Included: Yes
Clutch Disc Diameter: 9.4 IN
Clutch Disc Diameter: 240 MM
Disc Material: Ceramic
Input Spline Quantity: 23
Input Shaft Diameter: 0.9375 IN
Alignment Tool Included: Yes
California Proposition 65: Warning: This product can expose you to chemicals including carbon black, glass wool fibers, or silica (in clutch discs), chromium and nickel, which are known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov
Flywheel Type: Streetlite
Part Fitment Requirement: Single Mass Coversion kit. Must use ACT flywheel (included in kit).
Product Weight (lbs.): 30.5

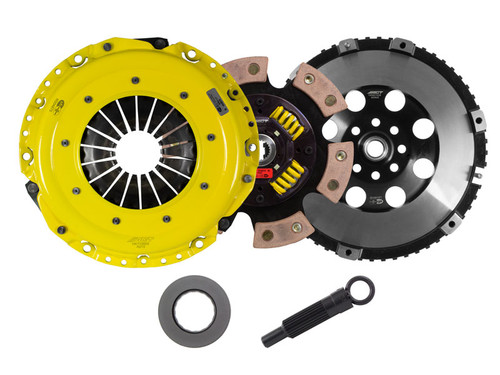

Title: ACT HD/Race Sprung 6 Pad Kit
Torque Capacity (ft/lbs.): 583
Torque Capacity Over OE: 185%
